Round Bend U Bolt
Leader-Fastener® is a manufacturer and distributor of Round Bend U Bolt. We have a complete line of service from having invested in production plants, export department and to having a quality control team and center to meet your requirements. We regard quality as the life of the company. We persist in good quality as the first policy and have established a set of quality control and inspection system according to the international standard.We have carried out ISO9001 Quality Guarantee System in every course of production, transportation and selling.We do hope we could be your partner in business by topping quality, knight service and competitive price in the near future and be your friends as well.
Send Inquiry PDF DownLoad
Product Description

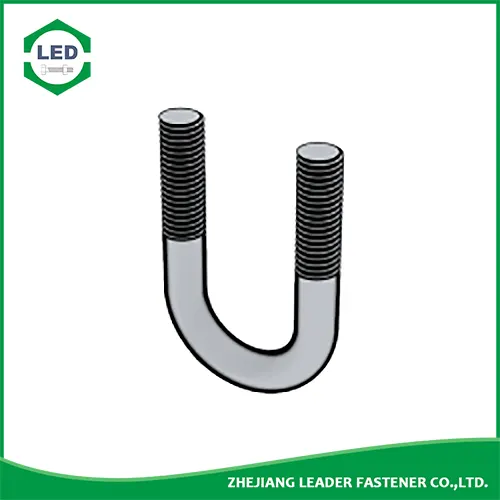

Leader-Fastener® Round Bend U Bolt have two threaded arms connected by a u-shape bend. Round bend U-Bolts have a broad range of industrial industrial applications. They are typically used for attaching pipe or steel round bar to a round wood or steel post, or to hang wrought iron pipe in mechanical installations. U-bolts can be embedded in concrete as anchor bolts. Round bend u-bolts can also be used for leaf spring truck and trailerapplications.
Round shape U-bolts can be bolted on to an existing bracket or combined with a mounting plate for a secure hold on the mounting surface. U-bolts are a sturdier fastening solution than routing clamps and hangers.
Whatever the application, the signature U-shaped bend in the bolt keeps it in place. The bend provides a sturdy joint for frame fastening, foundation or roof anchors, wire and cables, piping support, conduit support, and finally motor and engine components.
Leader-Fastener® ASME B 18.31.5 (UR) - 2011 U-Bolts, Round Bend (F468, F593, F1554, A307, A193/A193M, A320/A320, SAE J429)
| Nominal Diameter | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 5/16 | 5/16 | 5/16 | 5/16 | |
| d | U04C012 | U04C013 | U04C022 | U04C017 | U04C020 | U04C031 | U04C023 | U04C027 | U04C034 | U04C030 | U04C032 | U05C021 | U05C022 | U05C023 | U05C026 | |
| PP | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 18 | 18 | |
| L | Nominal Size | 1.25 | 1.25 | 2.25 | 1.75 | 2 | 3.125 | 2.25 | 2.75 | 3.438 | 3 | 3.25 | 2.188 | 2.188 | 2.188 | 2.688 |
| max | 1.28 | 1.28 | 2.28 | 1.78 | 2.03 | 3.155 | 2.28 | 2.78 | 3.468 | 3.03 | 3.28 | 2.218 | 2.218 | 2.218 | 2.718 | |
| min | 1.22 | 1.22 | 2.22 | 1.72 | 1.97 | 3.095 | 2.22 | 2.72 | 3.408 | 2.97 | 3.22 | 2.158 | 2.158 | 2.158 | 2.658 | |
| n | Nominal Size | 0.563 | 0.75 | 0.75 | 1 | 1 | 1 | 1.125 | 1.125 | 1.125 | 1.25 | 1.25 | 1.375 | 1.375 | 1.5 | 1.5 |
| max | 0.593 | 0.78 | 0.78 | 1.03 | 1.03 | 1.03 | 1.155 | 1.155 | 1.155 | 1.28 | 1.28 | 1.405 | 1.405 | 1.53 | 1.53 | |
| min | 0.533 | 0.72 | 0.72 | 0.97 | 0.97 | 0.97 | 1.095 | 1.095 | 1.095 | 1.22 | 1.22 | 1.345 | 1.345 | 1.47 | 1.47 | |
| b | max | 0.81 | 0.685 | 1.56 | 1.06 | 1.06 | 1.56 | 1.31 | 1.435 | 2.435 | 1.435 | 1.435 | 1.435 | 1.06 | 1.06 | 1.185 |
| min | 0.69 | 0.565 | 1.44 | 0.94 | 0.94 | 1.44 | 1.19 | 1.315 | 2.315 | 1.315 | 1.315 | 1.315 | 0.94 | 0.94 | 1.065 | |
| Nominal Diameter | 5/16 | 5/16 | 5/16 | 5/16 | 5/16 | 5/16 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | |
| d | U05C045 | U05C027 | U05C047 | U05C032 | U05C056 | U05C037 | U06C022 | U06C023 | U06C025 | U06C027 | U06C026 | U06C031 | U06C036 | U06C066 | U06C041 | |
| PP | 18 | 18 | 18 | 18 | 18 | 18 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |
| L | Nominal Size | 4.5 | 2.688 | 4.75 | 3.188 | 5.625 | 3.688 | 2.25 | 2.25 | 2.5 | 2.75 | 2.625 | 3.125 | 3.625 | 6.625 | 4.125 |
| max | 4.53 | 2.718 | 4.78 | 3.218 | 5.685 | 3.718 | 2.28 | 2.28 | 2.53 | 2.78 | 2.655 | 3.155 | 3.655 | 6.685 | 4.155 | |
| min | 4.47 | 2.658 | 4.72 | 3.158 | 5.565 | 3.658 | 2.22 | 2.22 | 2.47 | 2.72 | 2.595 | 3.095 | 3.595 | 6.565 | 4.095 | |
| n | Nominal Size | 1.75 | 1.75 | 1.75 | 1.75 | 2 | 2 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
| max | 1.78 | 1.78 | 1.78 | 1.78 | 2.03 | 2.03 | 2.03 | 2.03 | 2.53 | 2.53 | 2.53 | 3.03 | 3.03 | 3.03 | 3.03 | |
| min | 1.72 | 1.72 | 1.72 | 1.72 | 1.97 | 1.97 | 1.97 | 1.97 | 2.47 | 2.47 | 2.47 | 2.97 | 2.97 | 2.97 | 2.97 | |
| b | max | 2.06 | 1.06 | 3.06 | 1.06 | 3.06 | 1.06 | 1.31 | 1.31 | 1.31 | 1.185 | 1.31 | 1.31 | 1.31 | 3.06 | 1.31 |
| min | 1.94 | 0.94 | 2.94 | 0.94 | 2.94 | 0.94 | 1.19 | 1.19 | 1.19 | 1.065 | 1.19 | 1.19 | 1.19 | 2.94 | 1.19 | |
| Nominal Diameter | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 7/8 | 7/8 | 7/8 | 1 | |
| d | U06C055 | U08C045 | U08C050 | U08C085 | U08C055 | U08C060 | U08C072 | U08C084 | U08C104 | U12C138 | U14C161 | U14C173 | U14C193 | U16C217 | |
| PP | 16 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 10 | 9 | 9 | 9 | 8 | |
| L | Nominal Size | 5.5 | 4.5 | 5 | 8.5 | 5.5 | 6 | 7.25 | 8.375 | 10.375 | 13.813 | 16.063 | 17.313 | 19.313 | 21.688 |
| max | 5.56 | 4.53 | 5.06 | 8.59 | 5.56 | 6.06 | 7.31 | 8.465 | 10.465 | 13.933 | 16.183 | 17.433 | 19.433 | 21.808 | |
| min | 5.44 | 4.47 | 4.94 | 8.41 | 5.44 | 5.94 | 7.19 | 8.285 | 10.285 | 13.693 | 15.943 | 17.193 | 19.193 | 21.568 | |
| n | Nominal Size | 3.5 | 3.5 | 3.5 | 4 | 4 | 4.5 | 5.625 | 6.75 | 8.75 | 10.875 | 12.875 | 14.125 | 16.125 | 18.125 |
| max | 3.53 | 3.53 | 3.53 | 4.03 | 4.03 | 4.53 | 5.685 | 6.81 | 8.84 | 10.965 | 12.995 | 14.245 | 16.245 | 18.245 | |
| min | 3.47 | 3.47 | 3.47 | 3.97 | 3.97 | 4.47 | 5.565 | 6.69 | 8.93 | 11.055 | 12.755 | 14.005 | 16.005 | 18.005 | |
| b | max | 2.31 | 1.685 | 1.56 | 3.06 | 1.56 | 1.56 | 2.06 | 2.06 | 2.06 | 4.06 | 4.31 | 4.31 | 4.31 | 4.81 |
| min | 2.19 | 1.565 | 1.44 | 2.94 | 1.44 | 1.44 | 1.94 | 1.94 | 1.94 | 3.94 | 4.19 | 4.19 | 4.19 | 4.69 | |
